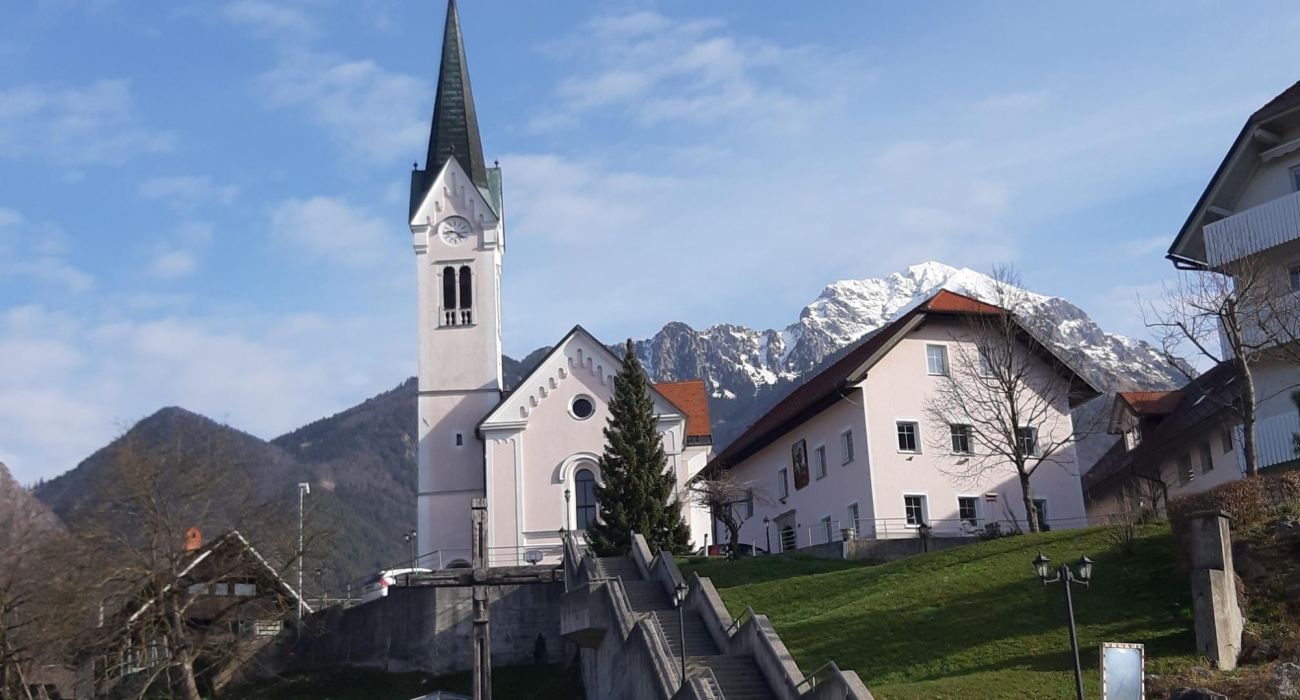

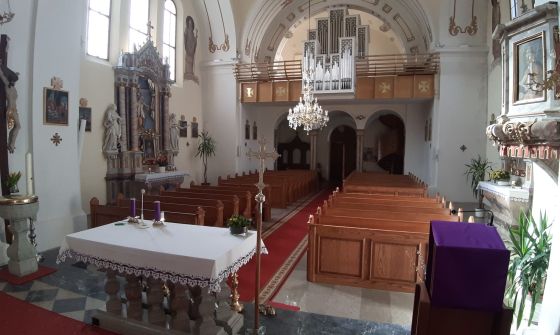

Renovation of St. Martin's Church, in 4042 Trstenik, Slovenia

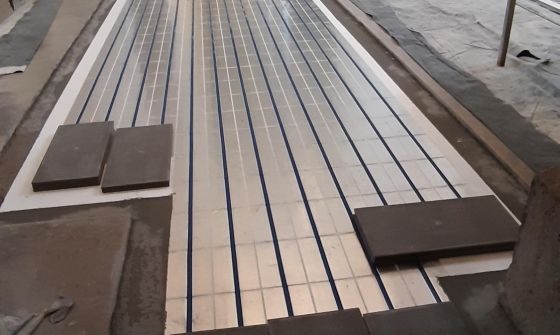

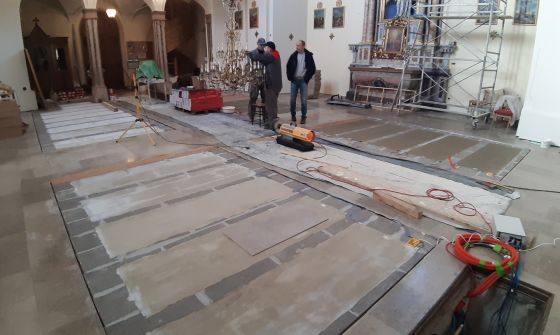

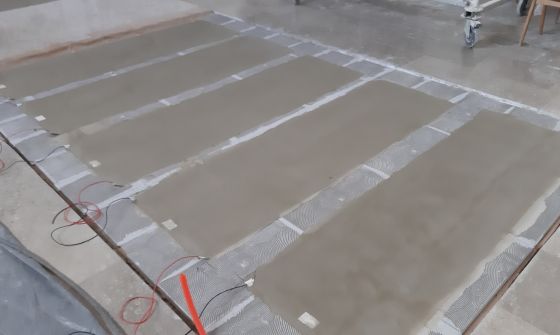

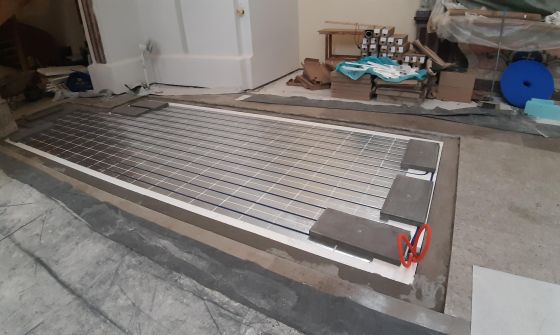

The parish had the nave of the church renovated. The hydraulic system IDEAL BASIC EPS 30 was used for future temperature control in the pew area. The COMPACT FLOOR EXPERT 15 was chosen as the heat-conducting layer, as it meets all the technical requirements for this type of building. In addition, E-NERGY CARBON FLEECE electric heating films were installed on top of the EXPERT 15 as a backup heating system. These ensure rapid heating of the floor before events.
- Type church
- Size 300 m²
- Underfloor heating IDEAL BASIC EPS 30 E-NERGY CARBON FLEECE
- area of the nave
construction
- Tiles ≥ 10 mm | Natural stone ≥ 15 mm
- If necessary, sealing in damp rooms
- Tile adhesive approx. 2 mm per layer 6 mm
- E-NERGY CARBON FLEECE 0.4 mm
- Insulation and decoupling panel 4 mm
- EPS edge insulation strip | NEO
- primer
- If necessary, moisture barrier (bonded to the substrate)
- 11 mm
