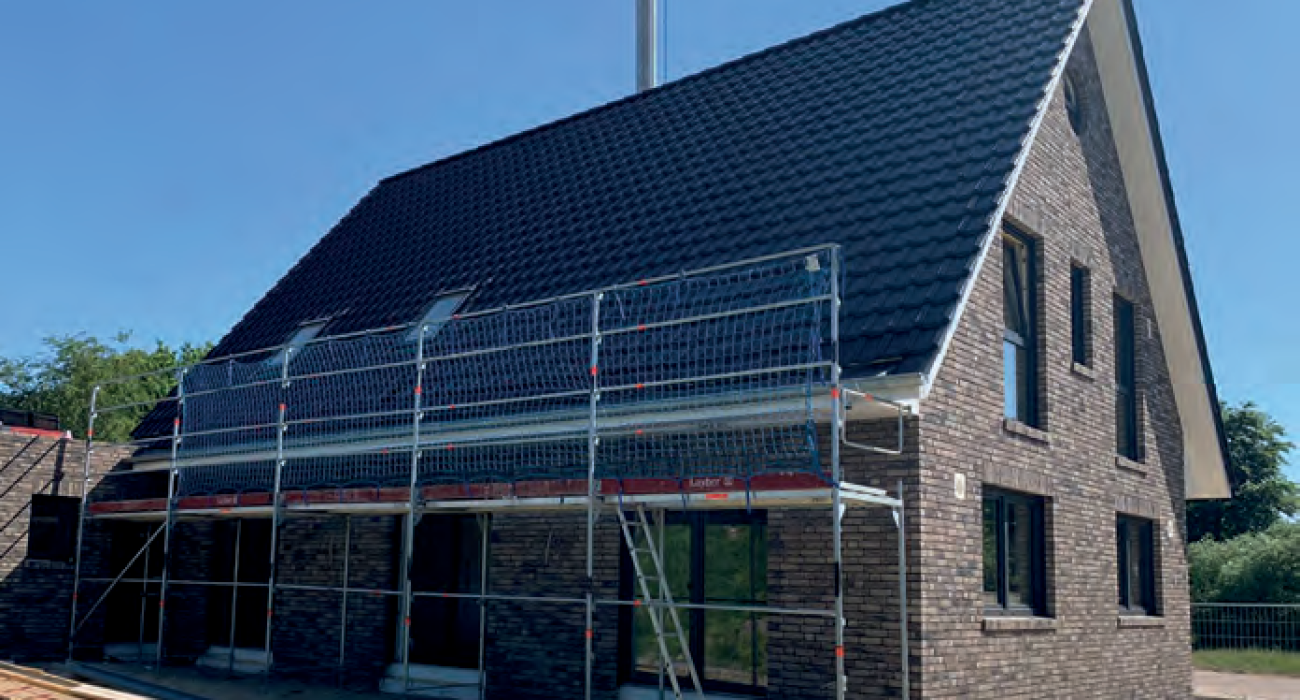

New construction of a single-family house in 49757 Werlte

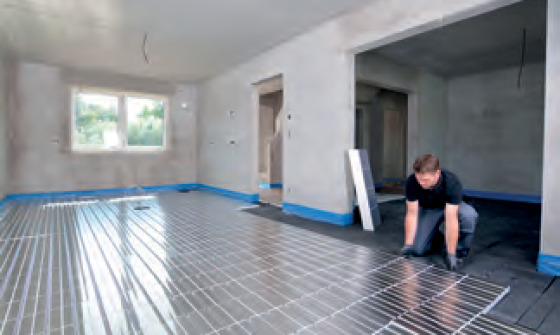

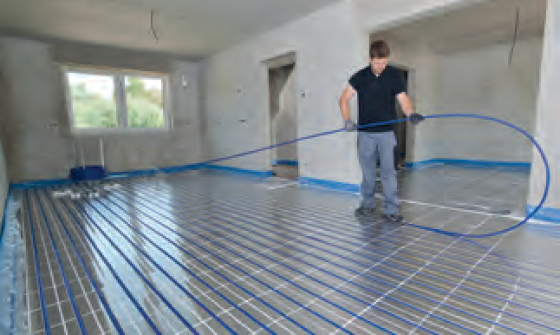

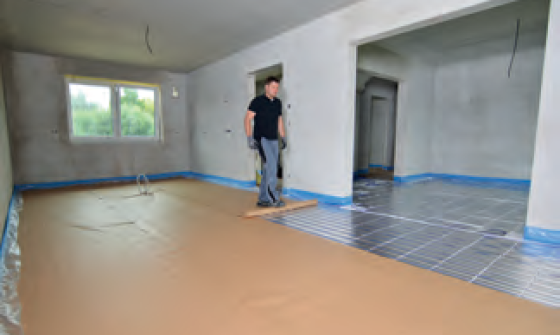

The ground and upper floors of this detached house were fully fitted with underfloor heating. The IDEAL EPS CLASSIC 30 with self-leveling screed was used. A total of 200 square meters of underfloor heating was installed. Tiles and designer flooring were chosen as the floor coverings.
- Flooring: Tile / Designer flooring
- Underfloor heating system IDEAL CLASSIC EPS 30
- Size 200 m²
- Ground and upper floor area

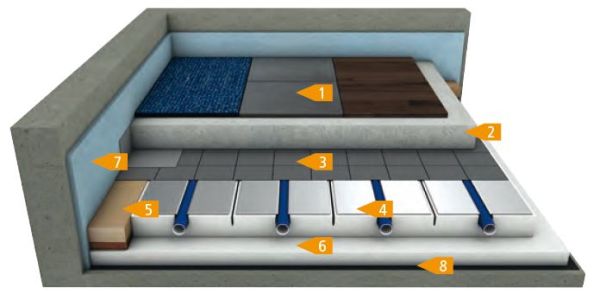

construction
- Carpet / Tiles / Parquet / Laminate / Designer flooring
- Flow screed (≥ CAF-F5) ≥ 40 mm
- Separation layer
- IDEAL CLASSIC EPS 30 + system pipe (16 mm) 30 mm
- optional frame timber (30 mm)

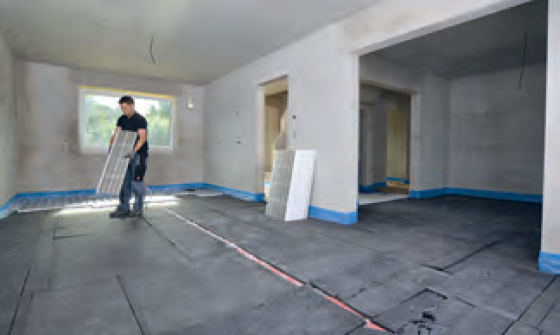

- Impact sound insulation EPS 040 DES, 20-2 20 mm
- Edge insulation strip
- Possibly a moisture barrier
- ≥ 90 mm
