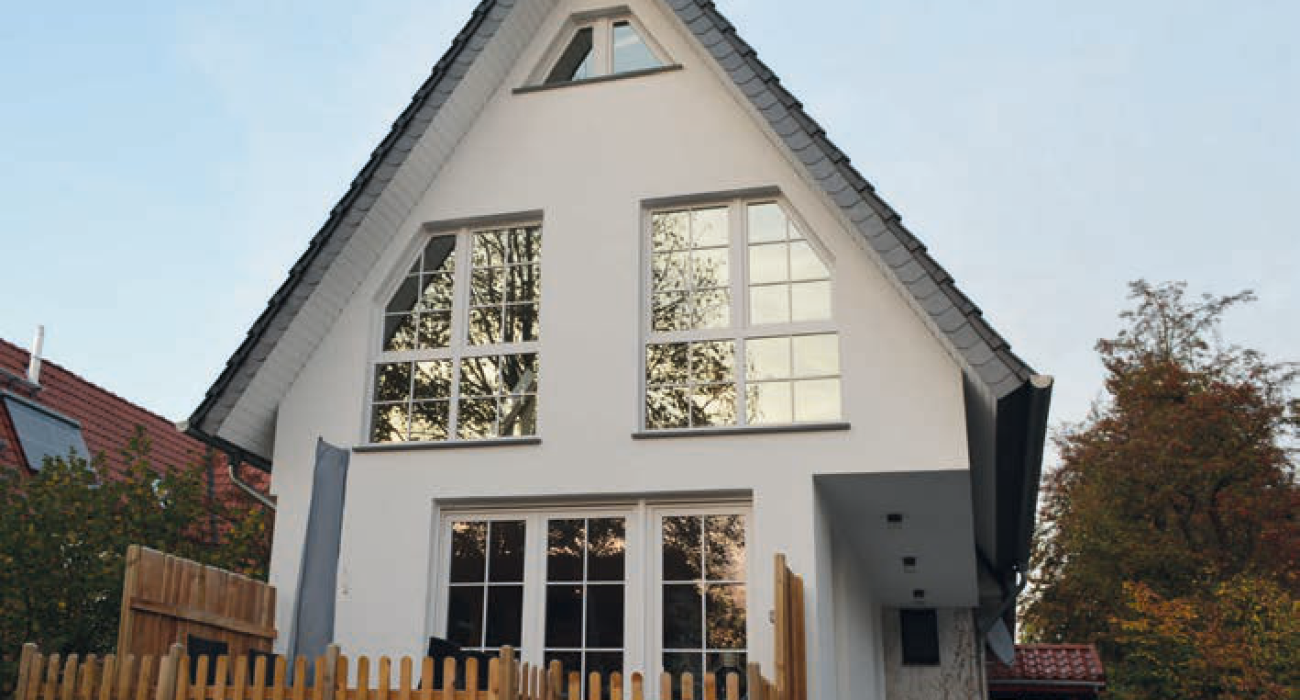

Conversion and extension of a detached house in 49078 Osnabrück

mfh_report_ceiling_basic_piephans

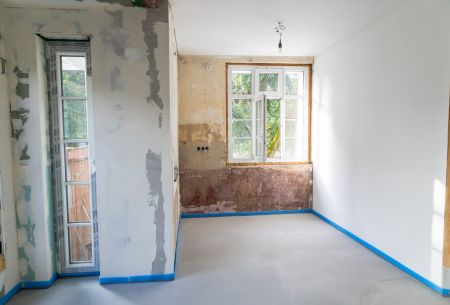

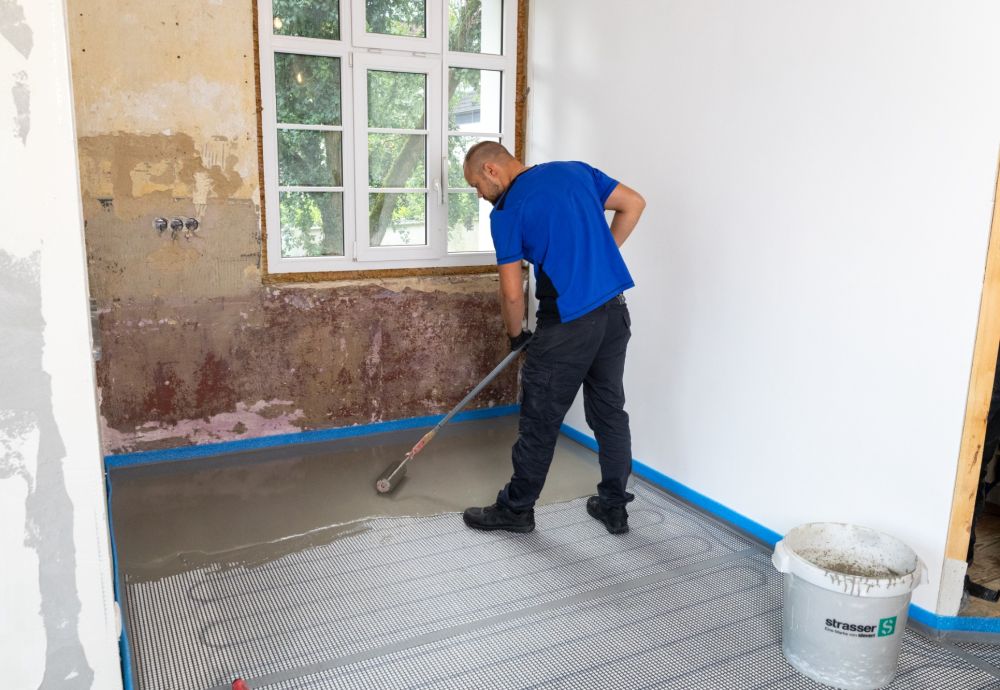

A detached house was renovated and an extension was added. Due to the low floor height in the existing structure, the IDEAL TOP EPS 15 with the SAFETEC reinforcement and decoupling membrane was used. A 10 mm thin leveling compound completes the construction.

video SAFETEC decoupling track view
  • Type:Single-family house
  • Size150 m²
  • IDEAL TOP EPS 15 underfloor heating
  • Living areaground floor
video SAFETEC decoupling track view
mfh_report_ceiling_basic_piephans

construction

  1. Carpet / Tiles / Parquet / Laminate / Designer flooring

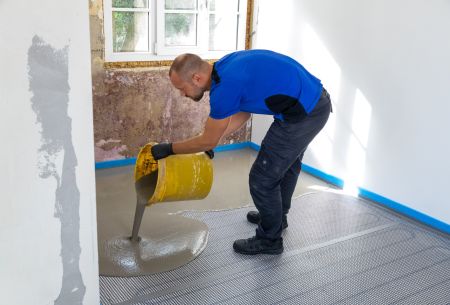

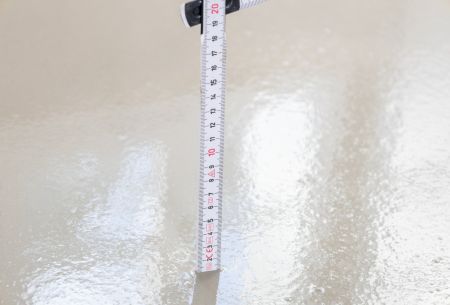

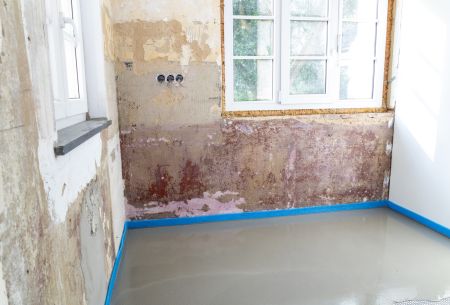

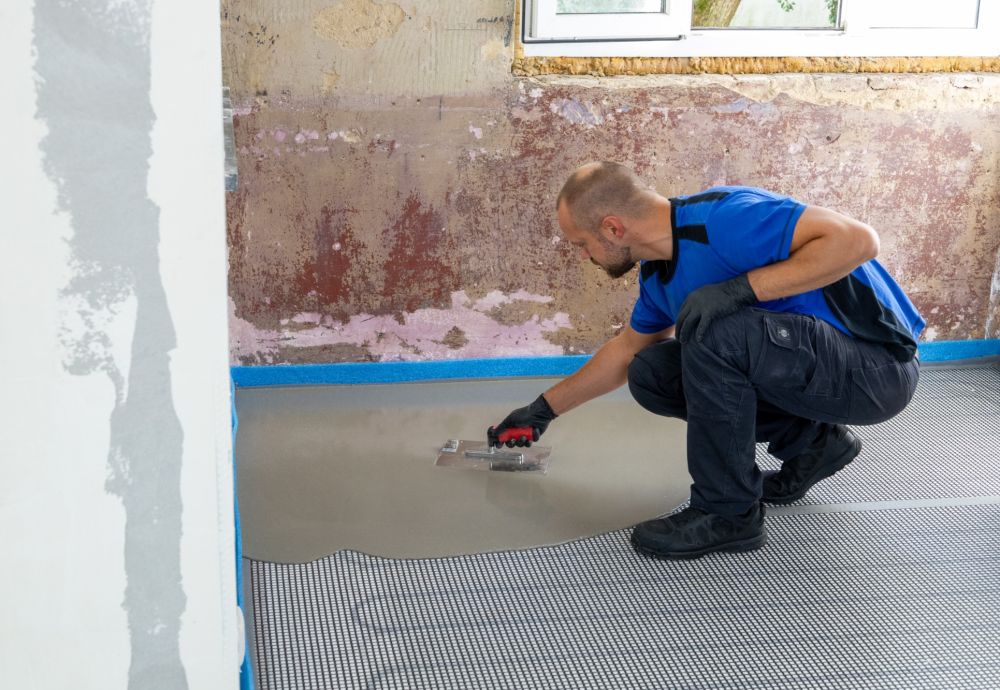

  2. Fiber-reinforced, cement-based leveling compound10 mm

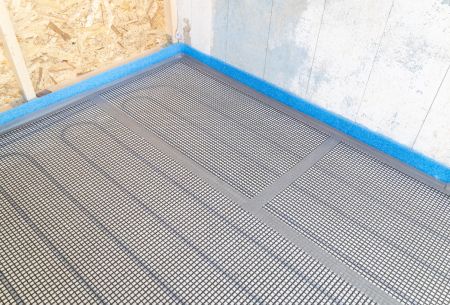

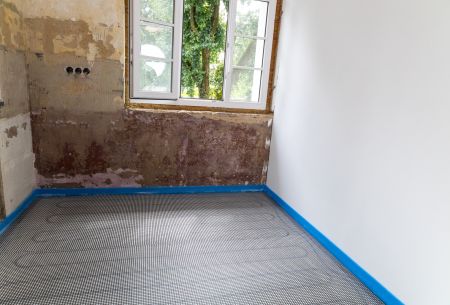

  3. SAFETEC1.5 mm

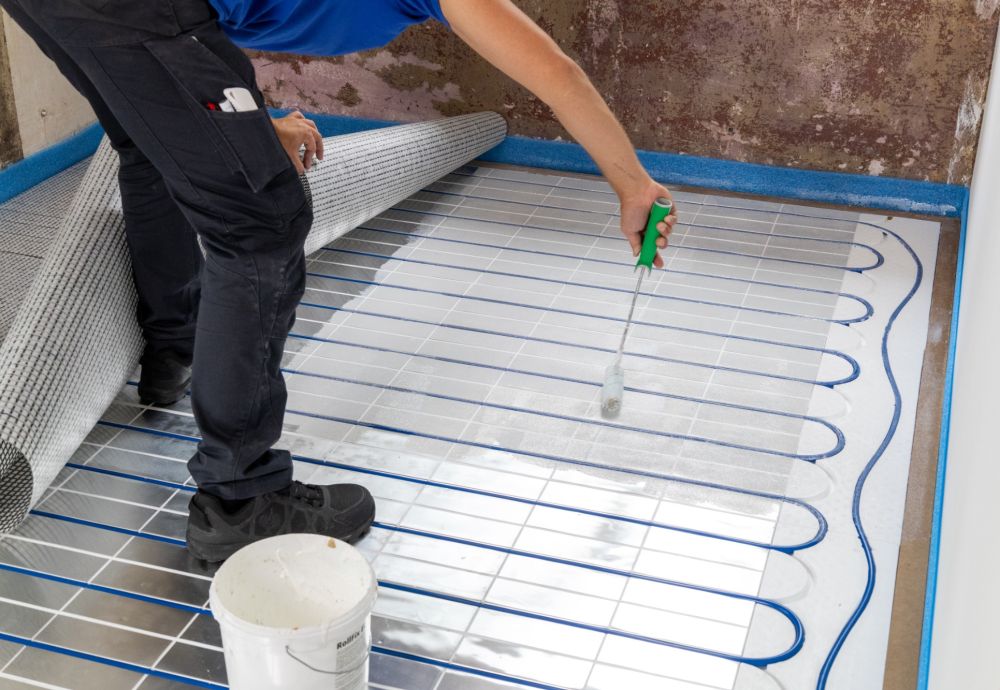

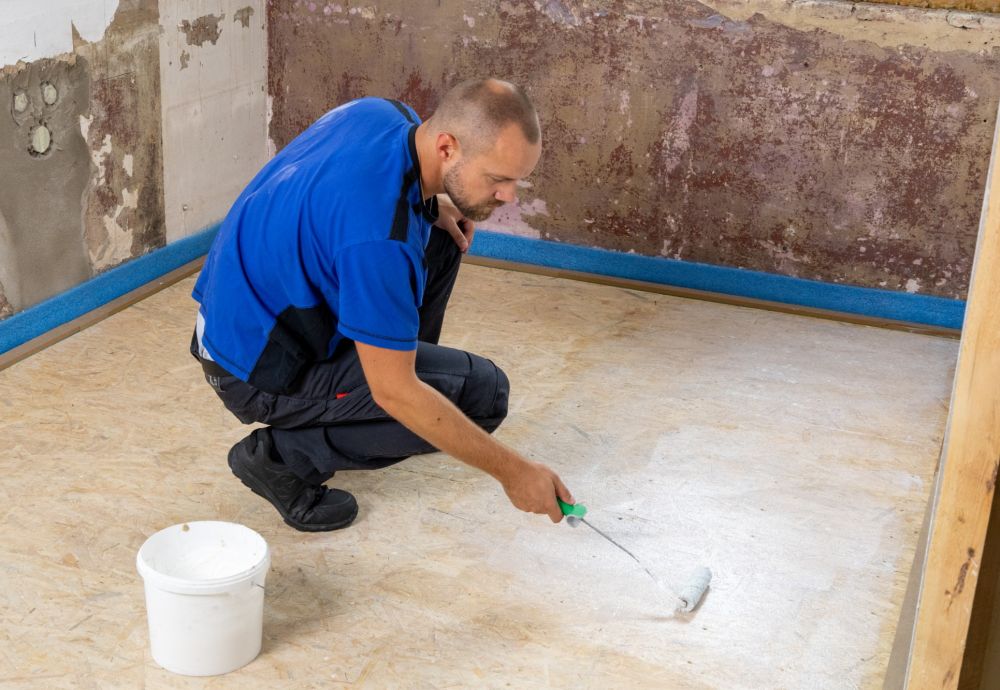

  4. Adhesive (RollFix ECO)

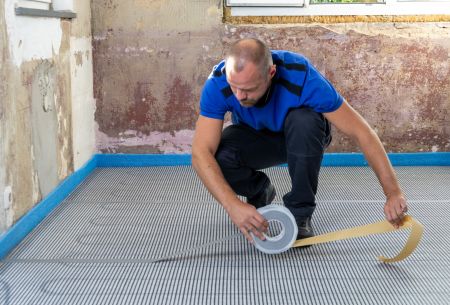

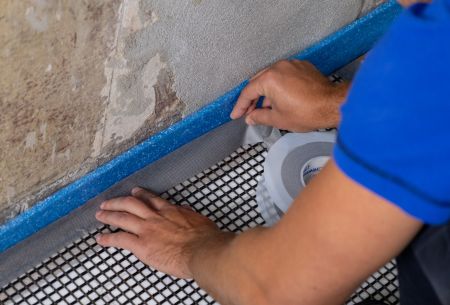

  5. Joint tape

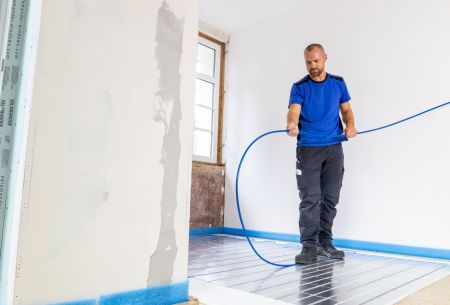

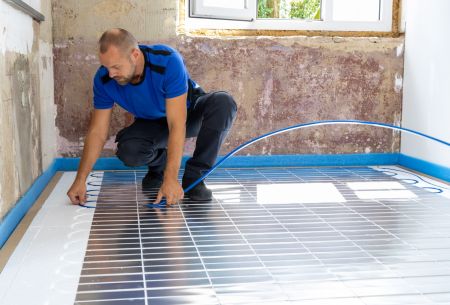

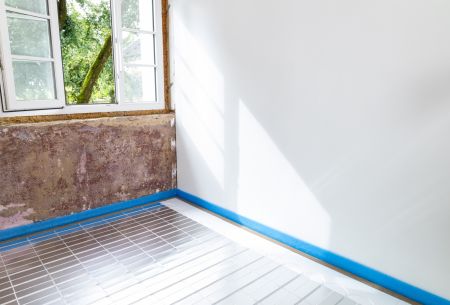

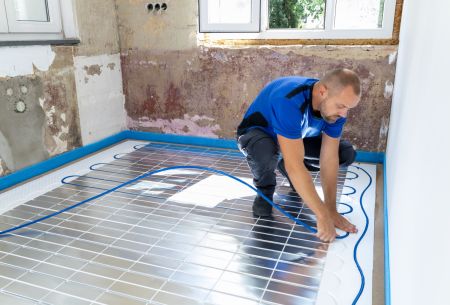

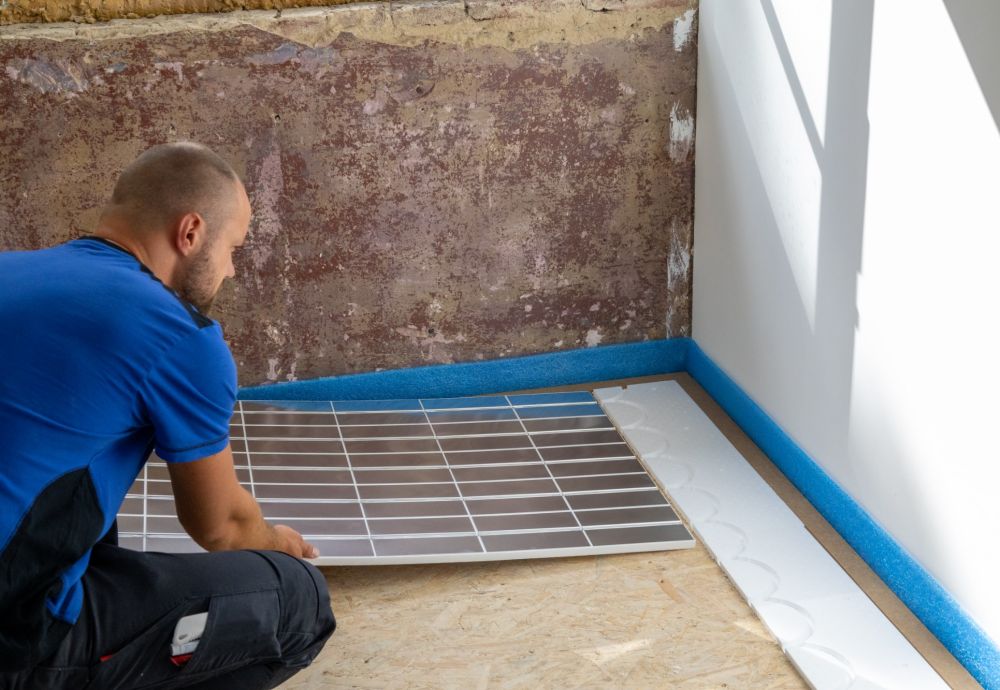

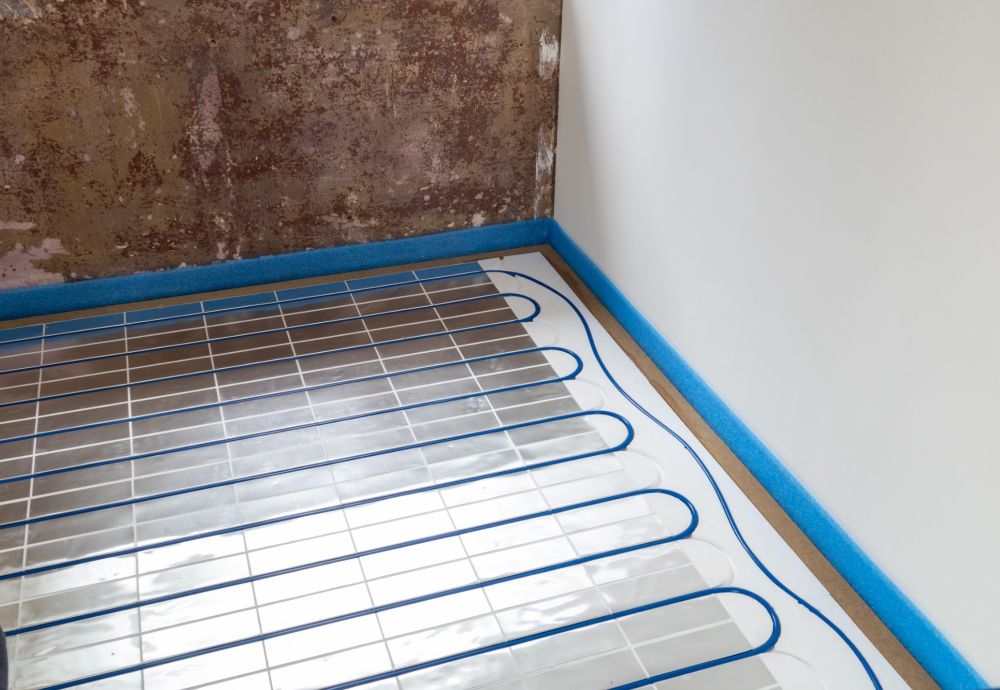

  6. IDEAL TOP EPS 15 + system pipe (12 mm)15 mm
  7. Frame timber (15 mm)

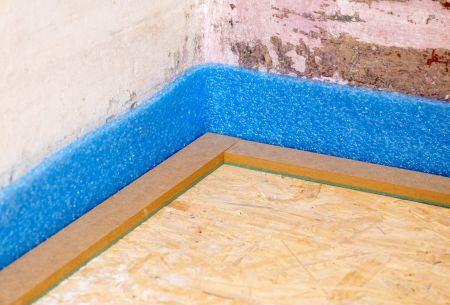

  8. EPS edge insulation strip | NEO
  9. If necessary, moisture barrier (bonded to the substrate)
  10. 26.5 mm
System IDEAL TOP EPS 15

Tiles ≥ 10 x 10 cm → ≤ 100 x 100 cm (aspect ratio 1:1 to 3:1)

System IDEAL TOP EPS 15

Joint width ≥ 3 mm

System IDEAL TOP EPS 15

Further references

Discover the diverse application possibilities of mfh systems products and take a look at other exciting references!

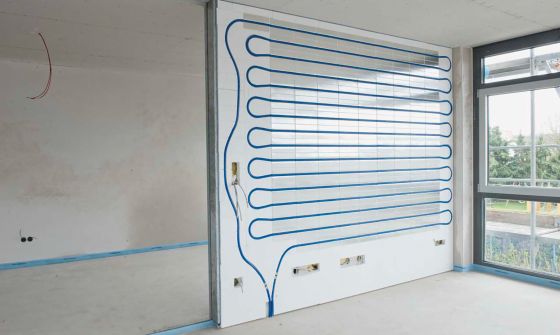

mfh_referenz_classic_eps_wand_Hager Feld_102015_DE
