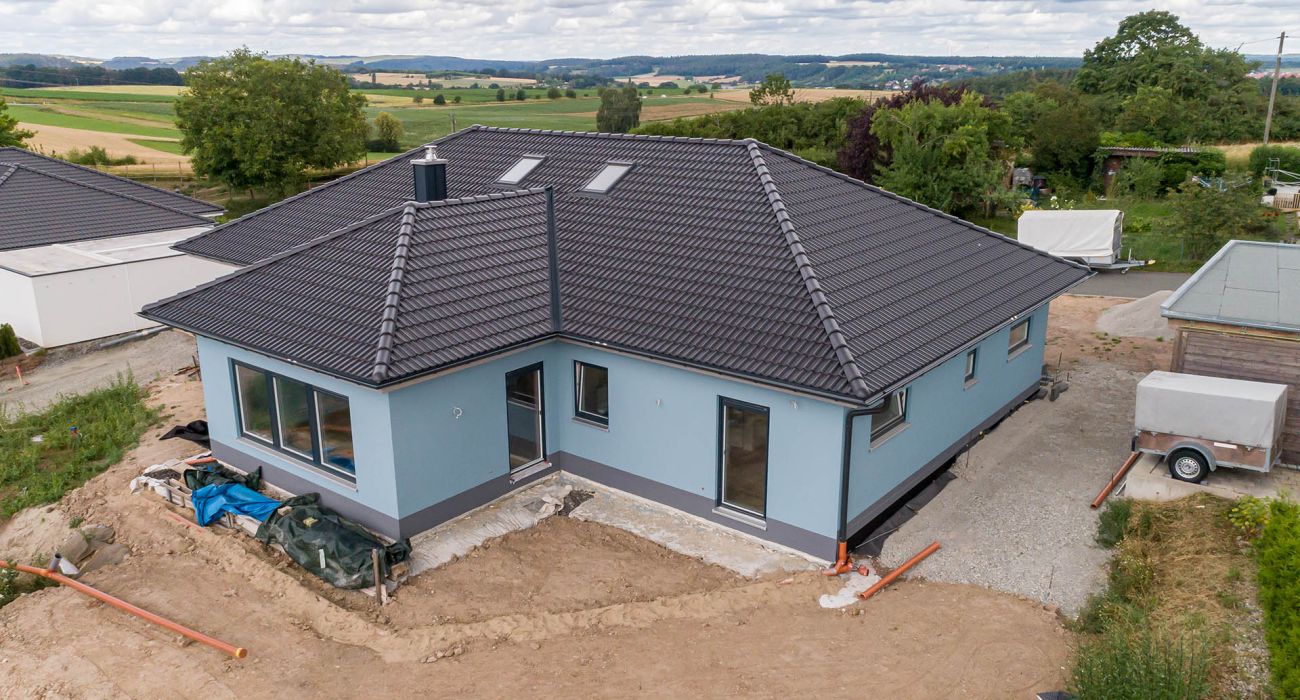

New construction of a bungalow in 96152 Burghaslach

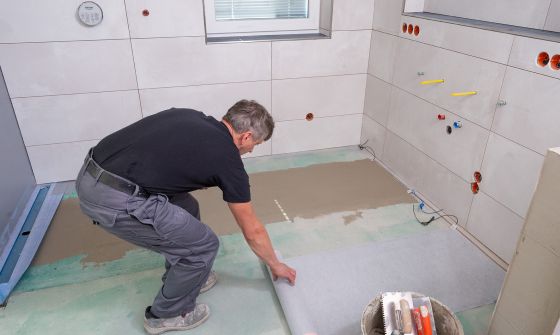

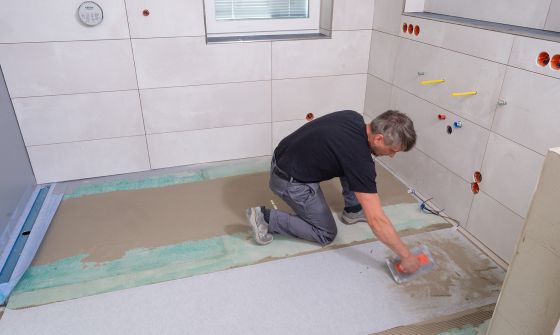

E-NERGY CARBON FLEECE system was installed in the bathroom of the bungalow . A heating film was installed inside the shower. In total, two 2-meter-long heating films were integrated into the floor of the 11 m² room.
- Flooring: Tiles
- E-NERGY CARBON FLEECE panel heating
- Size 11 m²
- Ground floor area
construction
- Tiles ≥ 10 mm | Natural stone ≥ 15 mm
- If necessary, sealing in damp rooms

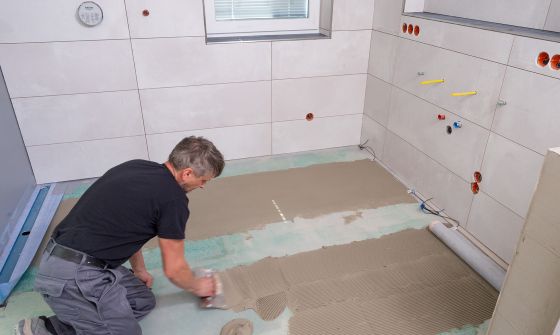

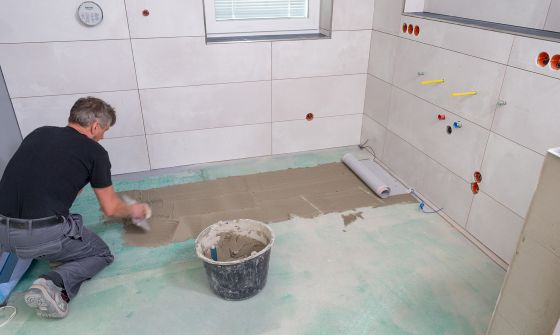

- Tile adhesive approx. 2 mm per layer, 4 mm
- E-NERGY CARBON FLEECE 0.4 mm
- EPS edge insulation strip | NEO
- primer
- If necessary, moisture barrier (bonded to the substrate)
- 5 mm
